Lamborghini Murcielago (M6S)

6 speed sequential gearbox conversion kit

Description

Gearbox kit designed to convert the standard Lamborghini Murcielago transmission to dog-change.

Features

  • Torque rating for endurance events is 800Nm (600ft.lb).

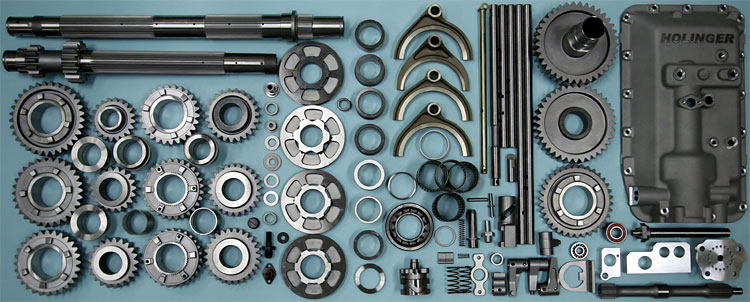

  • The gearbox kit includes 6 forward ratios, a pair of drop gears, a rear drive shaft and the selection mechanism with a mechanical shift rod.
  • All gears are profile ground for with an extensive range of ratios to select from.
  • Input is via a removable quill shaft.
  • A gear position sensor is supplied for interfacing with an electronic dash display. Alternatively a stand-alone gear indicator display is available for cars not fitted with an electronic dash.
  • Case hardened nickel chrome steel is used for all gears and shafts.
  • The selector forks are high strength aluminium bronze.
